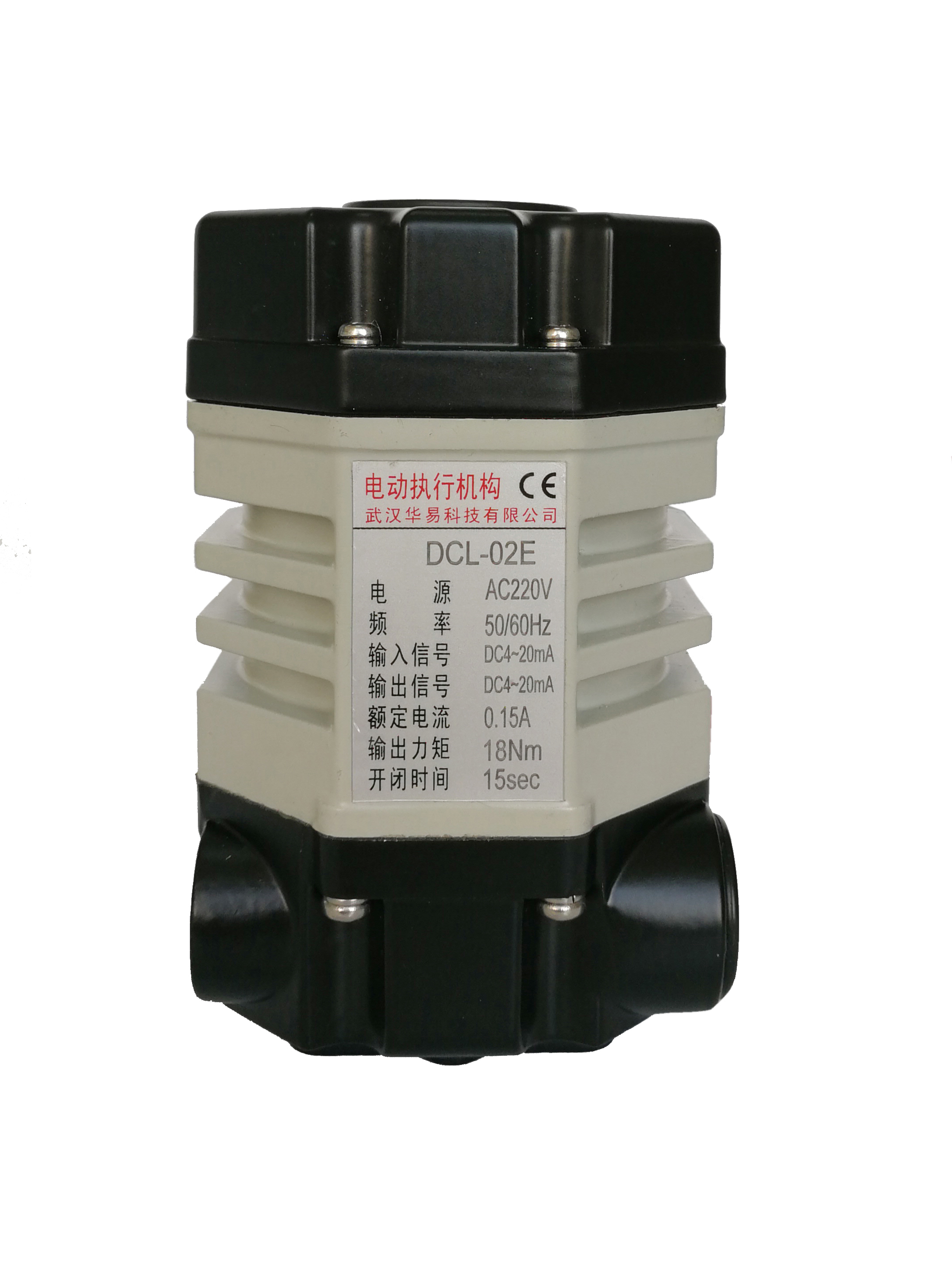

CE CSA AC24V 15S 18Nm Ultra Small Quarter Turn Electric Actuator

DCL-02 dimension and parameters.pdf

• Quarter turn standard, turning angle smaller than 360° optional
• Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
• Watertight housing cover with IP67 grade for indoor and outdoor use
• Two more limit switches to confirm valve position
• Self-locking when power off
• Strong gear train with soft nitriding metal gears
• Manual operation with handle
• CE marked/RoHS 3 tested/CSA listed

The DCL-02G is custom-engineered for high-security industrial sites that adopt 12VDC or 24VDC safety power supply standards. Its dedicated low-voltage design fundamentally mitigates electrical safety risks, delivering maximum protection for on-site operating personnel.

It is equipped with a built-in rare-earth permanent magnet motor, which produces far higher magnetic flux than ordinary ferrite motors. This enables the actuator to output outstanding torque and achieve high power density while maintaining an ultra-compact structure. In addition, the motor features excellent load stability performance. Unlike conventional DC motors that easily suffer speed deviation under changing loads, the DCL-02G sustains steady running speed amid varying load conditions. Such high operational precision enables smooth valve regulation, effectively reduces equipment vibration, and keeps heat generation at a low level—ensuring stable, efficient and durable operation even in the harshest working conditions.

Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.

DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
