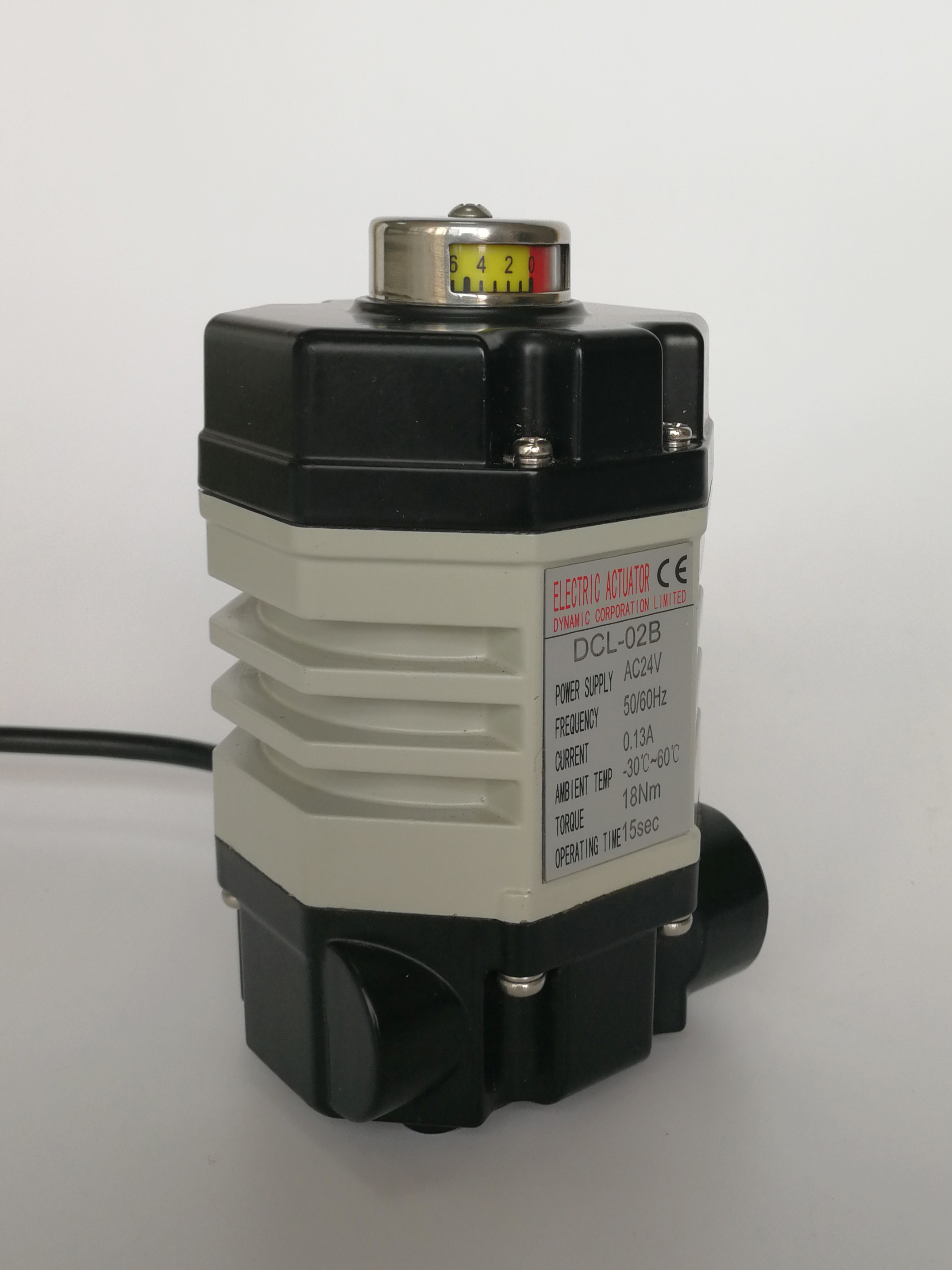

Aluminum Alloy Ultra Small AC110V 6W 0.15A Electric Quarter Turn Actuator

DCL-02 dimension and parameters.pdf

• Quarter turn standard, turning angle smaller than 360° optional
• Rare earth material permanent magnet brush motor, perfect robustness, very low temperature rise during operation
• Watertight housing cover with IP67 grade for indoor and outdoor use
• Two more limit switches to confirm valve position
• Self-locking when power off
• Strong gear train with soft nitriding metal gears
• Manual operation with handle
• CE marked/RoHS 3 tested/CSA listed

Purpose-built for high-security industrial environments, the DCL-02G operates on 12VDC or 24VDC safety power supplies. Its low-voltage architecture inherently eliminates electrical hazards, ensuring uncompromising safety for on-site personnel.

At its core is a rare-earth permanent magnet motor that generates significantly higher magnetic flux than conventional ferrite alternatives. This allows the actuator to deliver superior torque and high power density within a remarkably compact footprint. Furthermore, the motor is engineered for exceptional load stability; unlike standard DC motors prone to speed fluctuations, the DCL-02G maintains a consistent velocity regardless of load variations. This precision ensures fluid valve control, minimized vibration, and a remarkably low thermal footprint—delivering reliable, efficient performance in the most demanding applications.

Dynamic Corporation Limited is a high-tech, stockholding enterprise with independent export authority, specializing in the research, development, manufacture, and sales of electric actuators, electric valves, and automation control systems. The flagship DCL Series Electric Actuator is distinguished by its compact structure, refined appearance, intelligent control, outstanding performance, superior quality, and ease of operation.

DCL series actuators find wide application across industries such as petroleum, chemical, power generation, metallurgy, energy, paper making, water treatment, food & brewing, shipbuilding, as well as building automation systems. These products are highly trusted and favored by customers. Over years of field use, clients in diverse sectors have confirmed that DCL actuators consistently deliver excellence in reliability, longevity, after-sales support, and overall quality.
