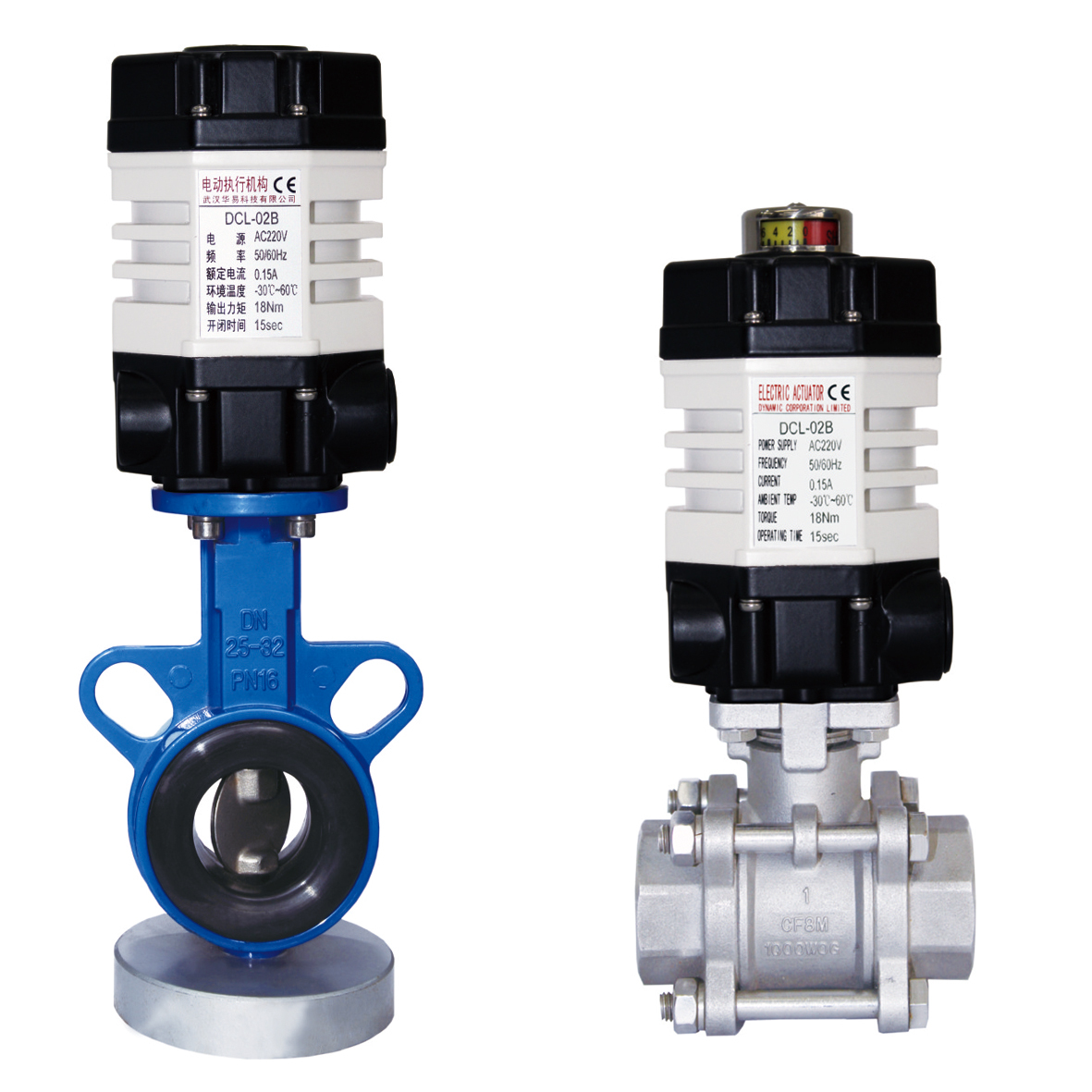

CSA IP67 18Nm Subminiature Quarter-Turn Electric Actuator

Product Features Standard output of 18 Nm with a 15-second operating time. Maximum torque of 24 Nm. Optional 7 s/9 Nm and 30 s/25 Nm operating configurations. Adjustable 0–90° travel for small ball and butterfly valves. Compact 1.2 kg design for equipment with limited installation space. IP67 enclosure with a stated ambient-temperature range of -25°C to +55°C. Model-dependent DC12V, DC24V, AC24V, AC110V and AC220V power supplies. On-off, intermediate-position and modulating
